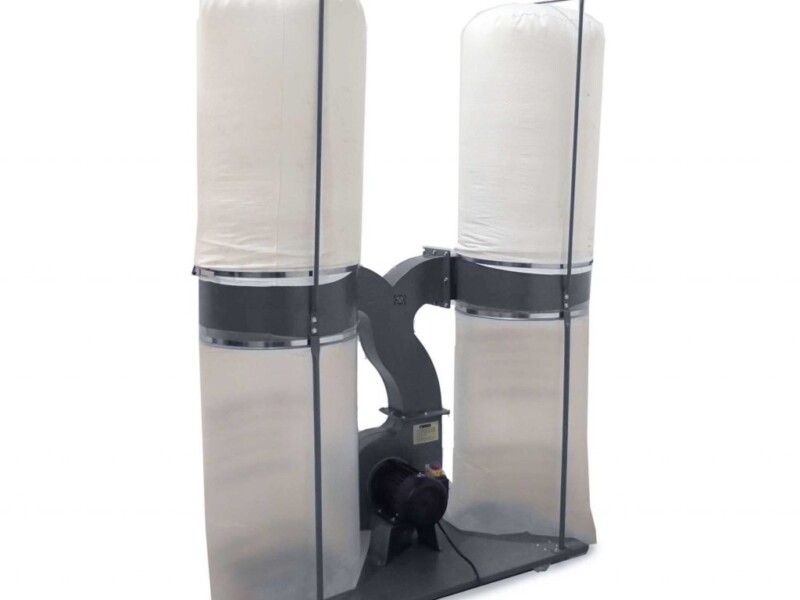

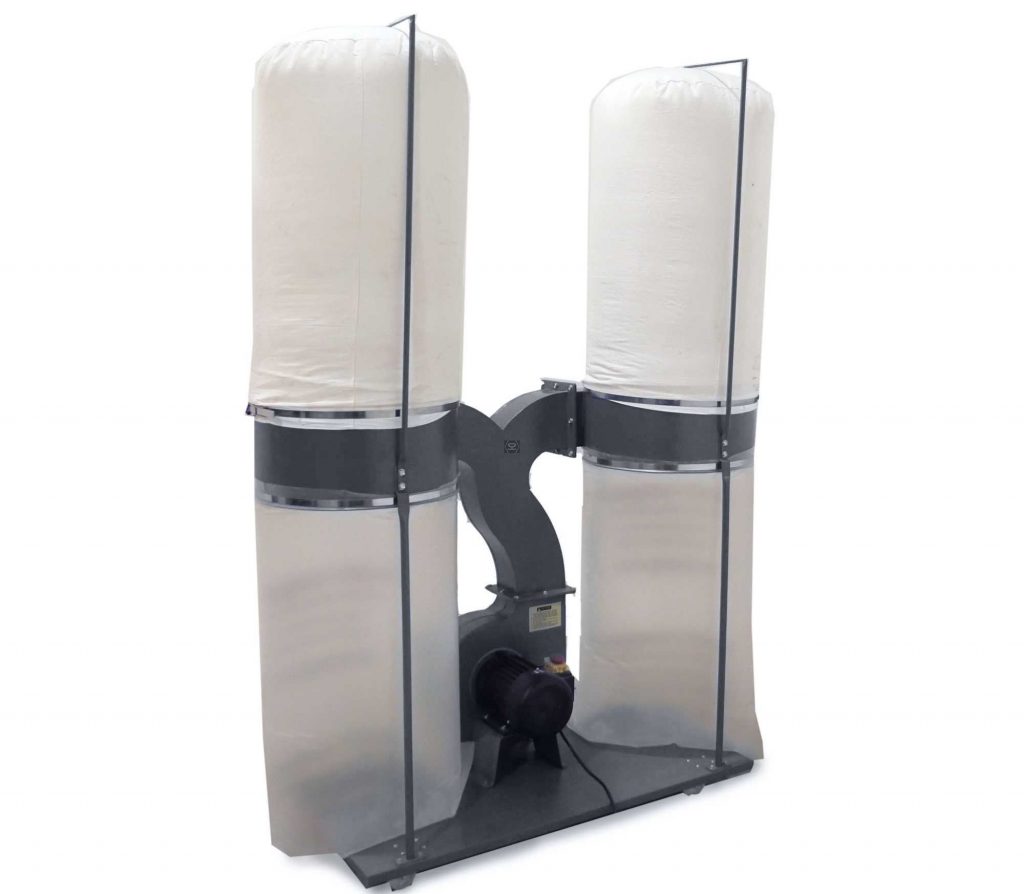

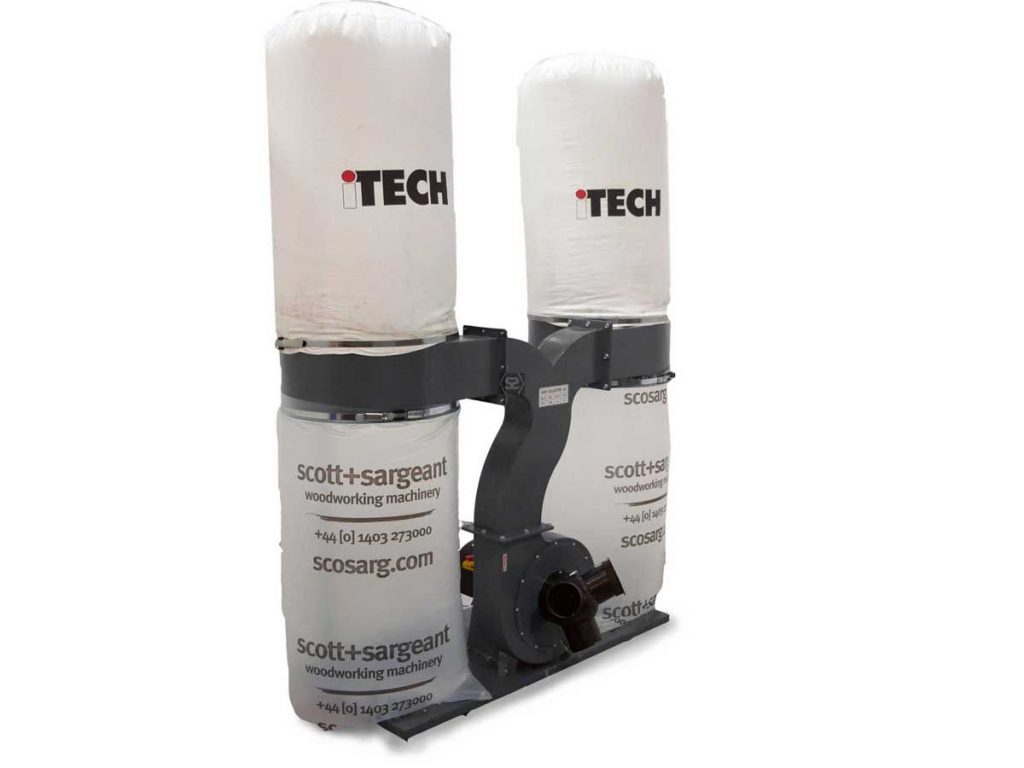

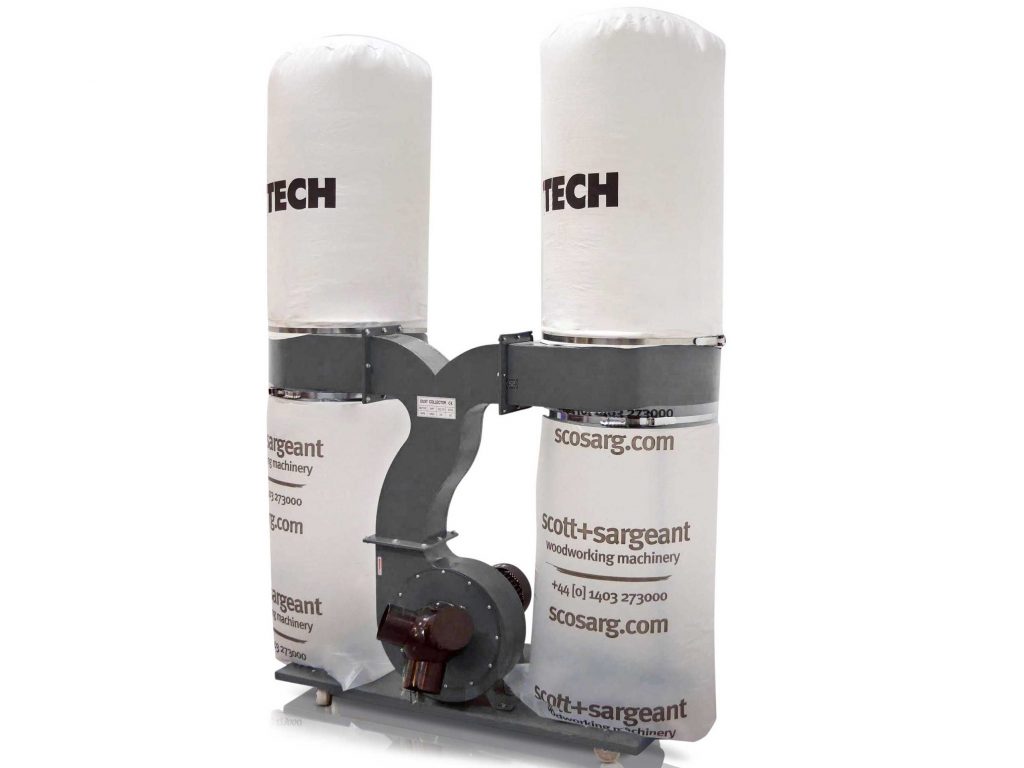

New ITECH DC002S Twin Bag Dust Extractor 415V

New Itech DC002S twin bag dust extractor 3 phase is a rugged extractor designed for small workshops. It is big enough to handle a 310mm planer or many other workshop machines. The cyclonic filtration system works by separating the waste from the airflow, diverting the waste into the plastic collecting bag whilst the filtered air passes through the bag.

The base has castors for mobility around the workshop. The 150 mm inlet is fitted with a triple branch 100mm adaptor, allowing connection to either one , two or  three machines.

• Fan diameter 300mm
• Inlet diameter 150mm
• Inlet holes 3 x 100mm
• Air capacity 1490 cfm
• Bag diameter 500mm
• Noise level 80dB
• 2.2KW (3hp) 3 phase 415 volt
• Overall size 92x 58x H193cm
• Standard bag filtration efficiency is 30 micron

Fine dust shaker filter cartridges are available for this machine click here for more details

For more information on this dust extractor  please click here
