Chisel Mortiser – Dominion BM
Specification
Solid cast iron construction
Largest chisel for softwood – 25mm
Largest chisel for hardwood – 20mm
Capacity 100mm chisel – 230mm deep x 200mm wide
Capacity 165mm chisel – 190mm deep x 200mm wide
Longitudinal movement of table – 480mm
Lateral movement of table – 100mm
Adjustable depth stop with optional haunch

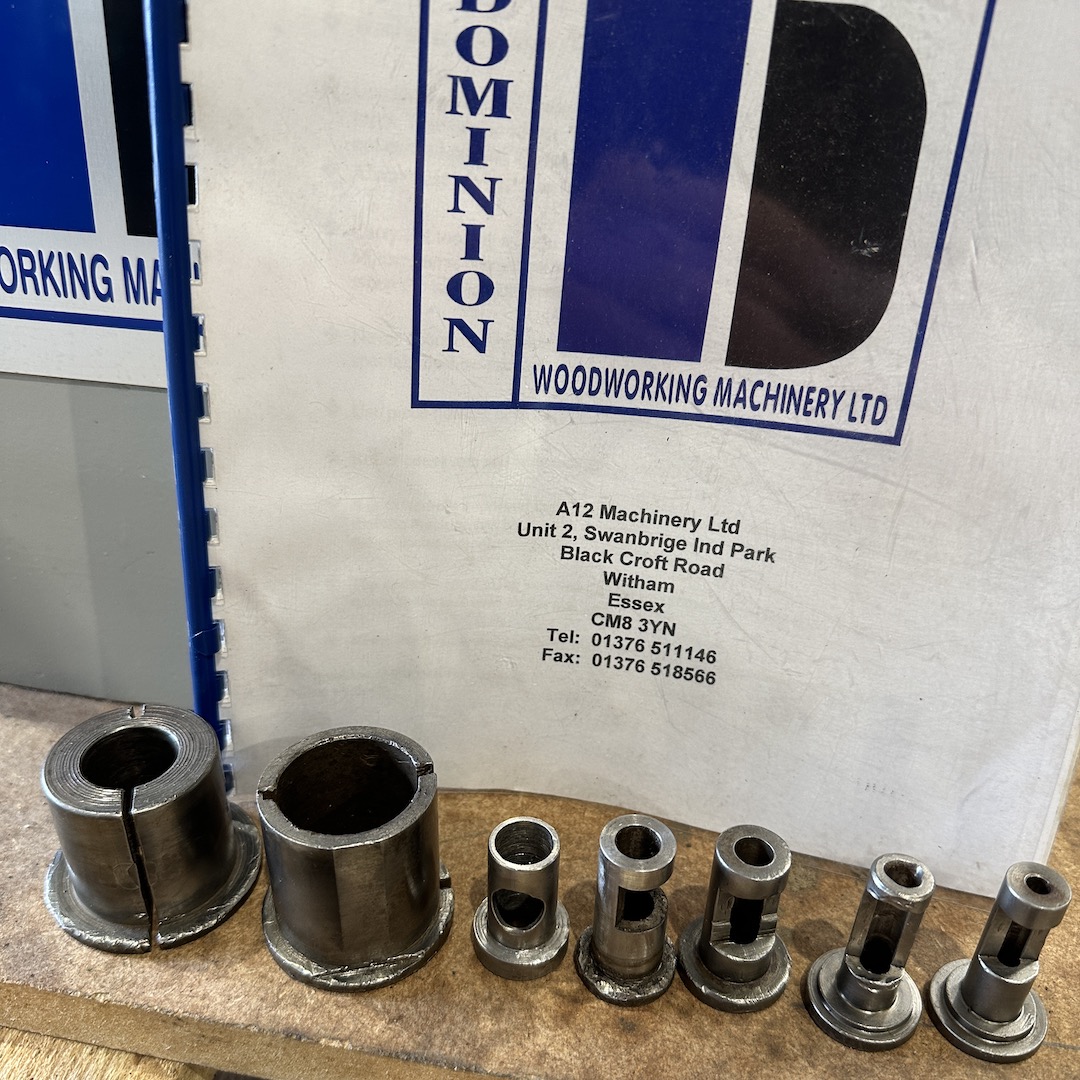

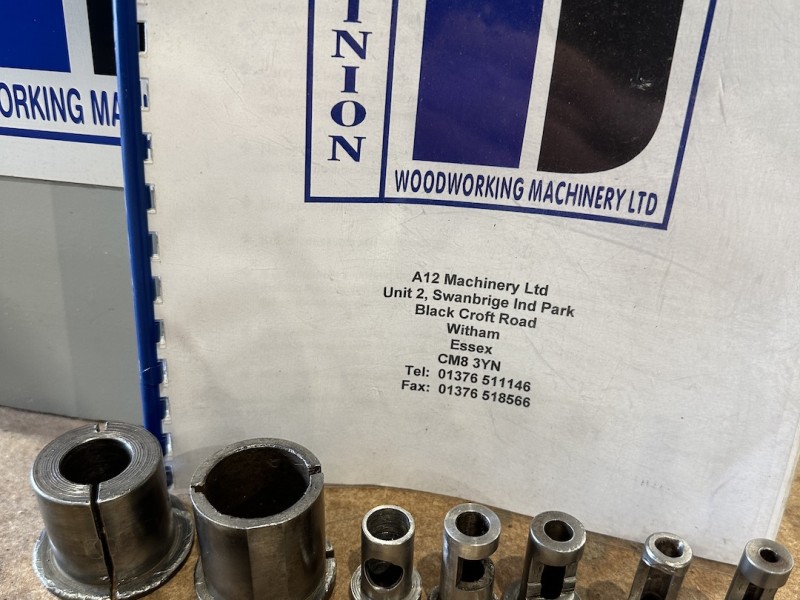

Full set of chisel and auger collars
Motor – 3KW (4Hp)
400v – Three phase
Operators handbook
Weight of machine – 950 kgs
C.E. Mark
Description

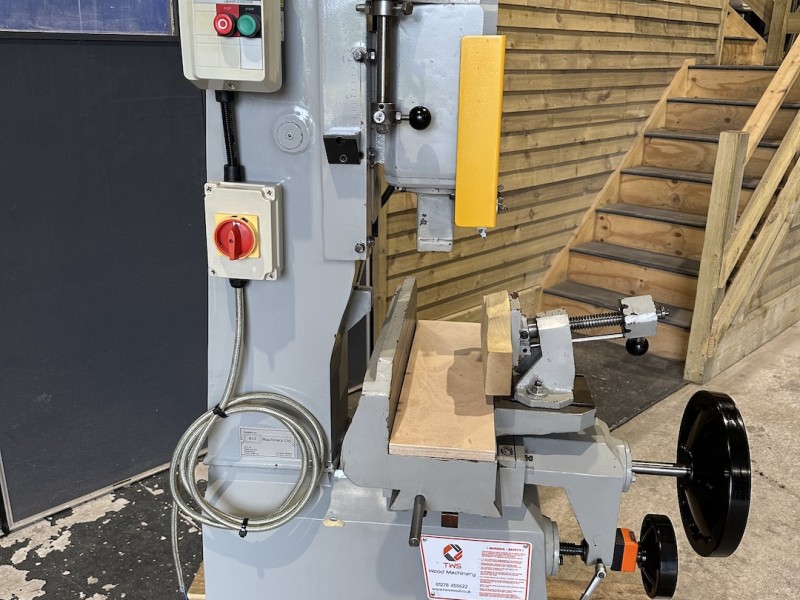

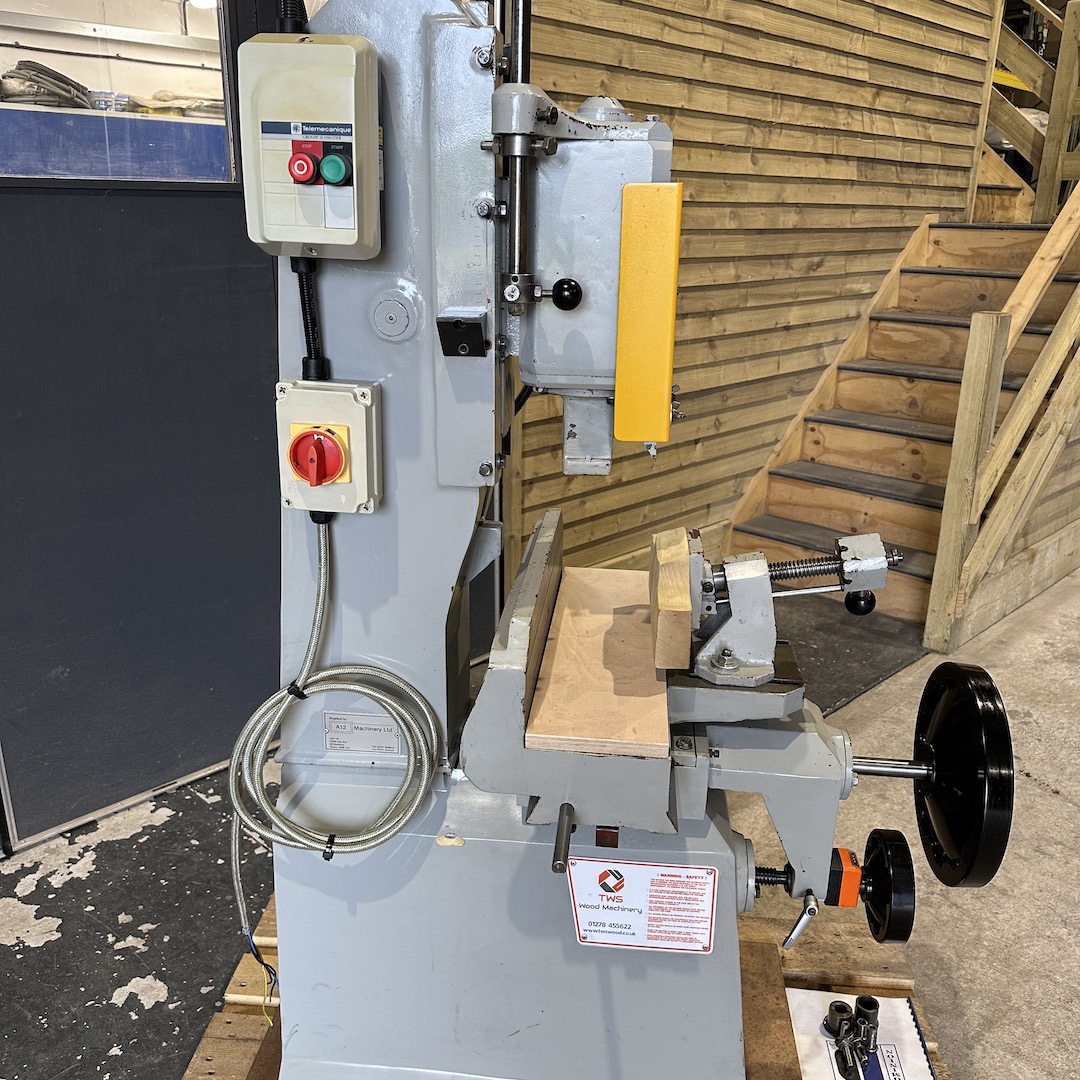

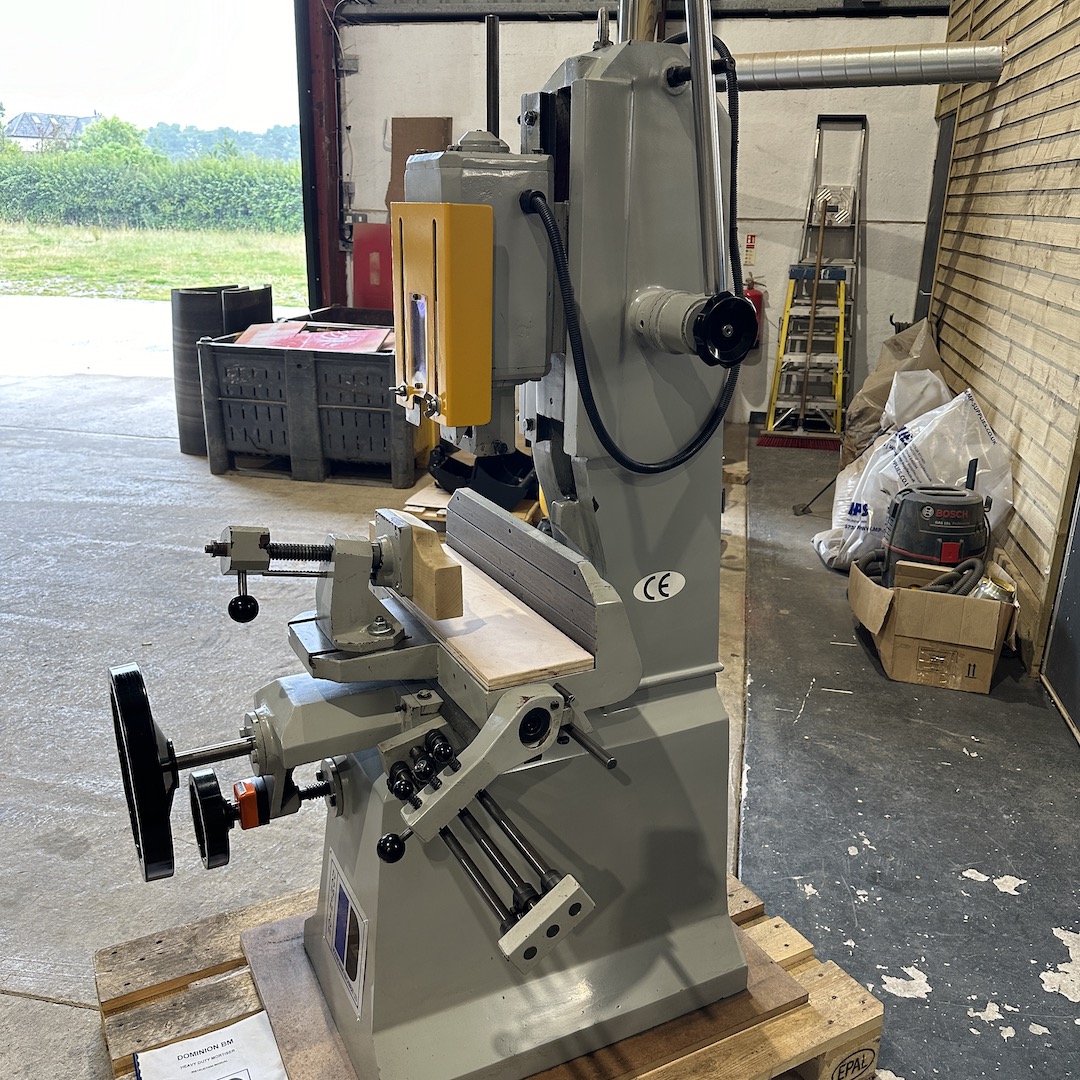

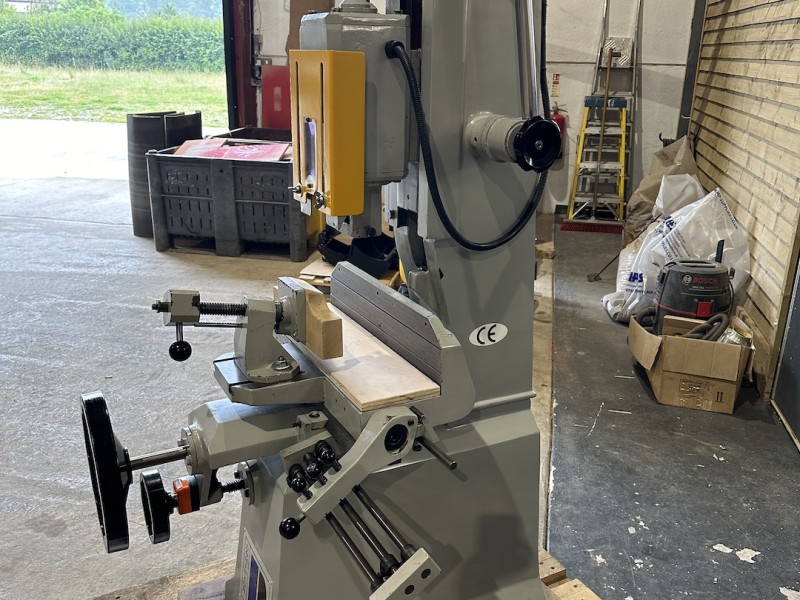

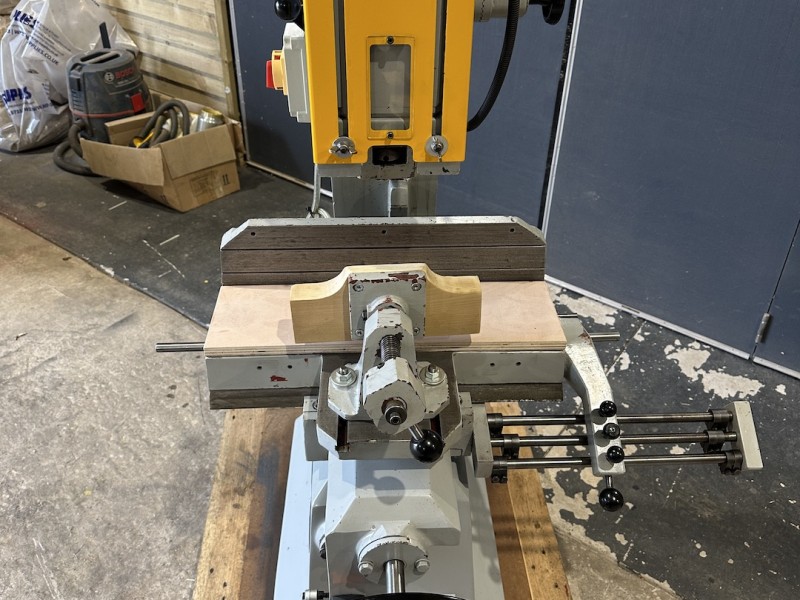

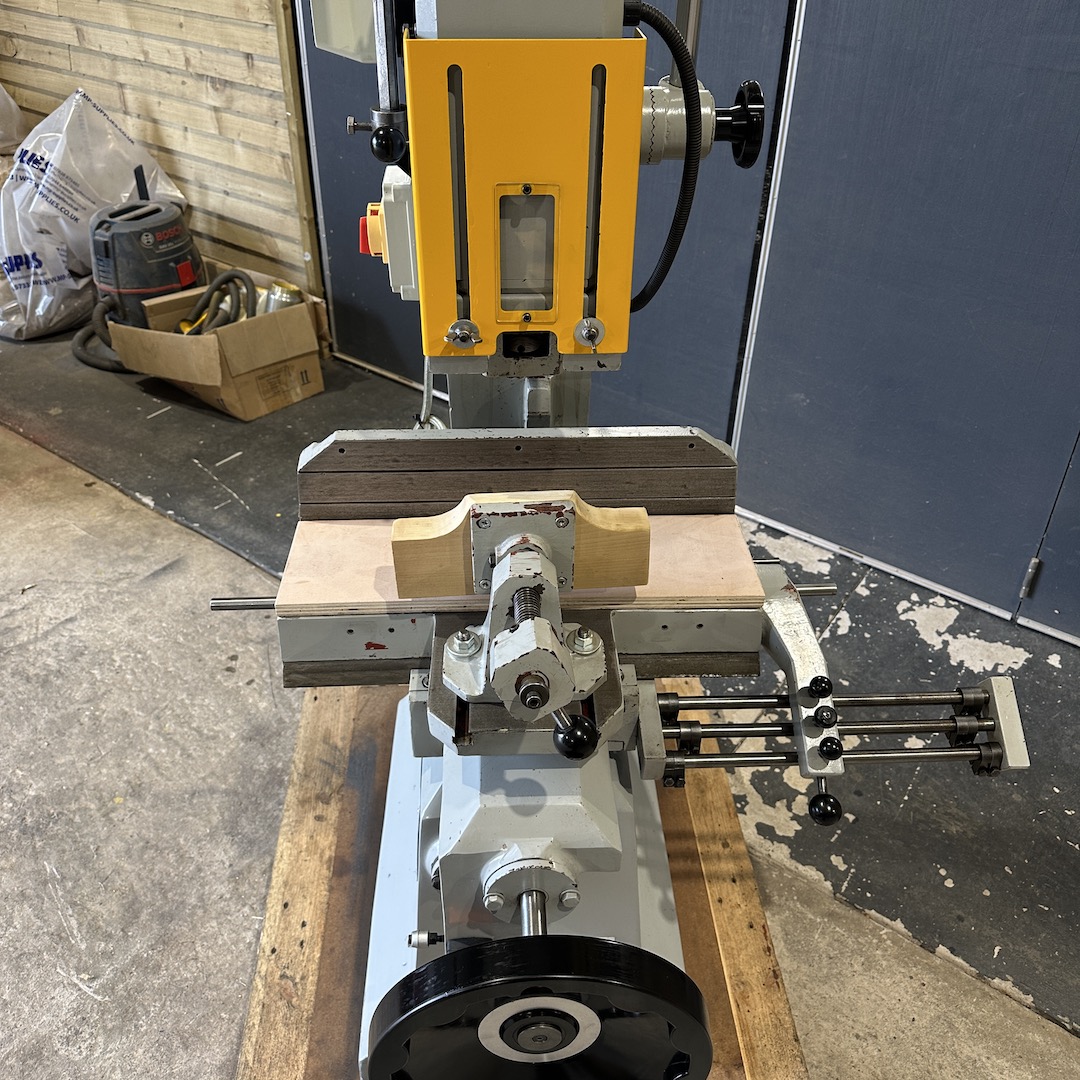

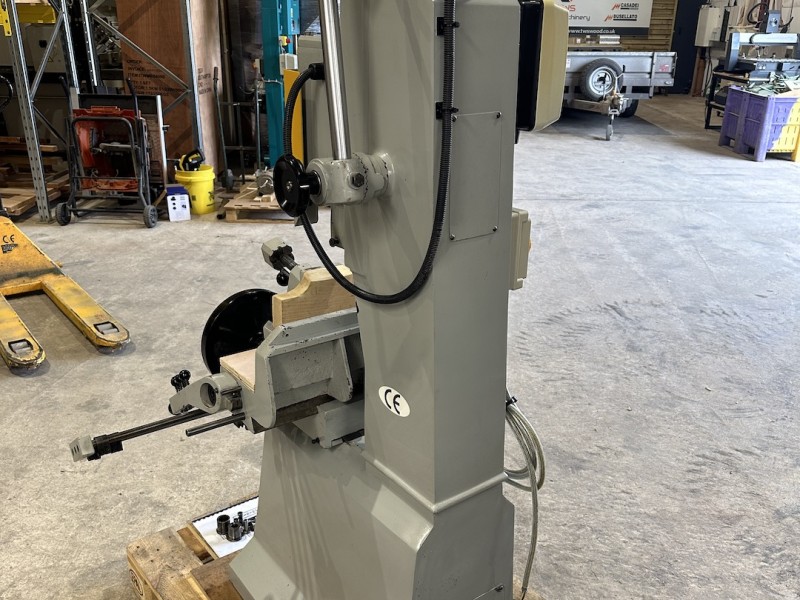

Chisel Mortiser – Model Dominion BM
Dominion’s version of the ever popular Wadkin DM.
The Dominion BM Mortiser head consists of a built in 3Kw (4Hp) motor which gives direct drive to the chisel unit.
The head is mounted on precision machined v shaped slide ways with spindle bearings running in dust proof enclosures.
The chisel holder bracket ensures perfect alignment in relation to the table below.
The head will accept chisels up to 25mm (1″) which hold in place by a split cast iron locking device.

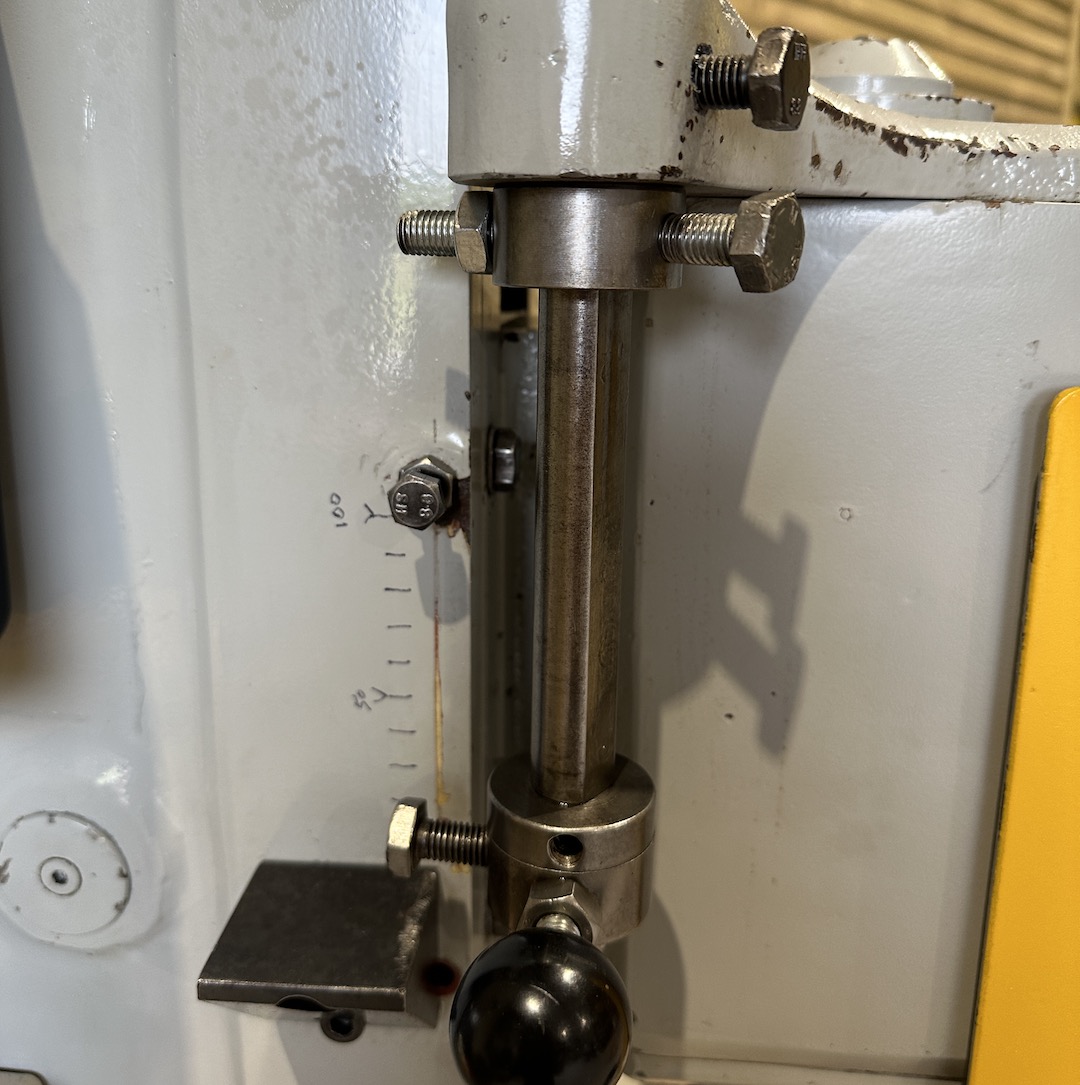

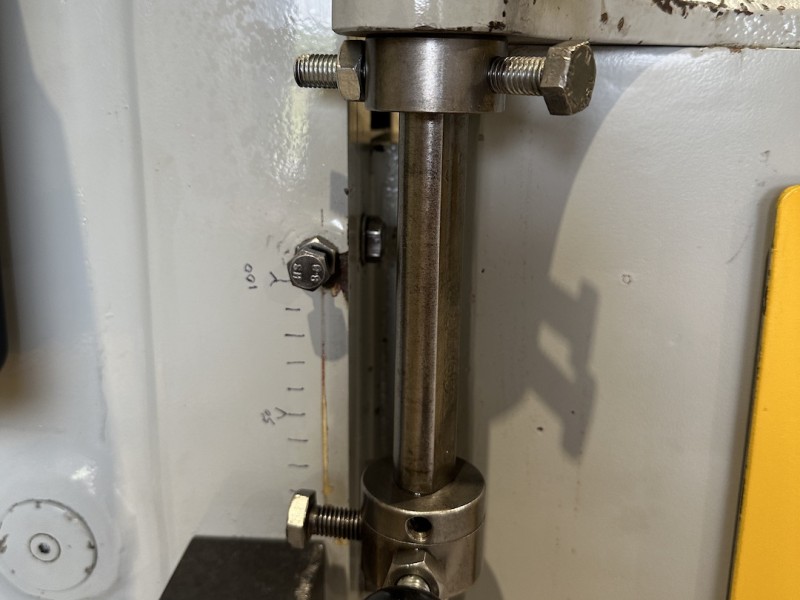

An adjustable depth stop regulates the depth of mortise. The hand lever is adjustable in both length and angle, thus providing comfort for the operator.
The table moves on machined slides resulting in a smooth and accurate movement.
Left to right movement is by a large hand wheel through rack and pinion gearing.

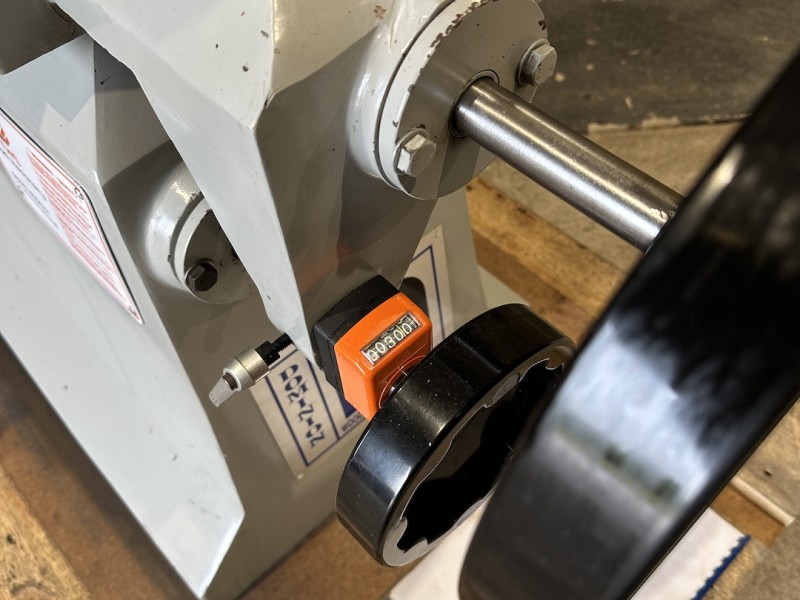

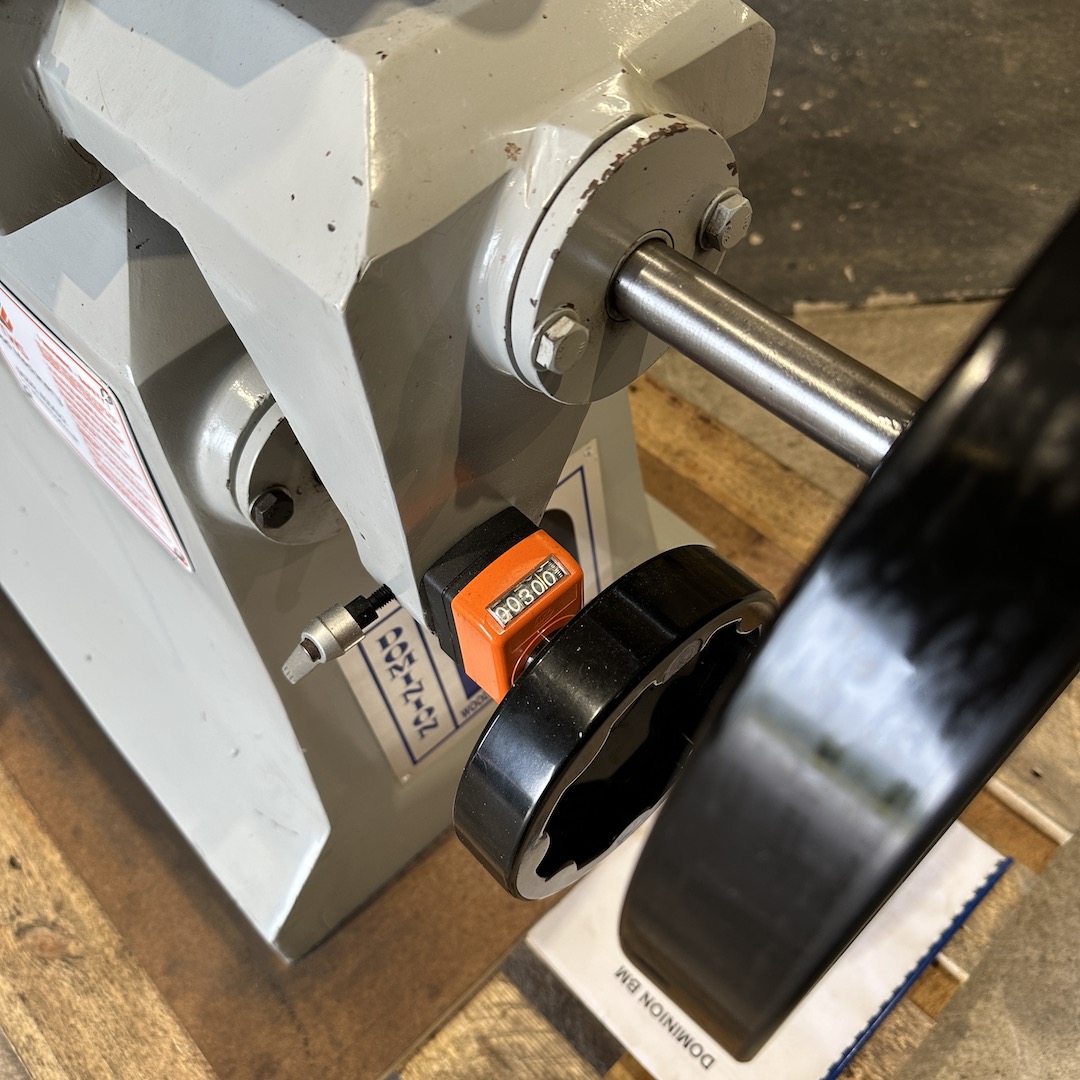

Front to back movement is through a separate smaller hand wheel using a screw thread with mechanical readout.

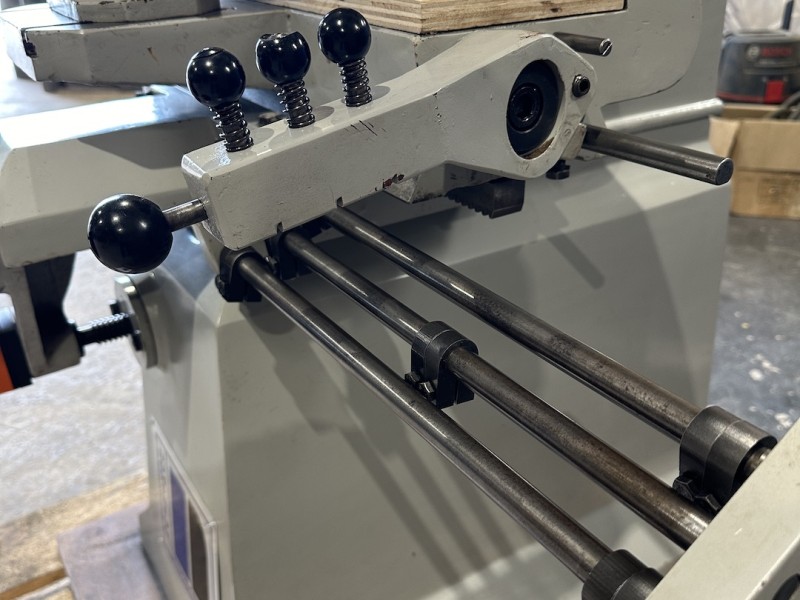

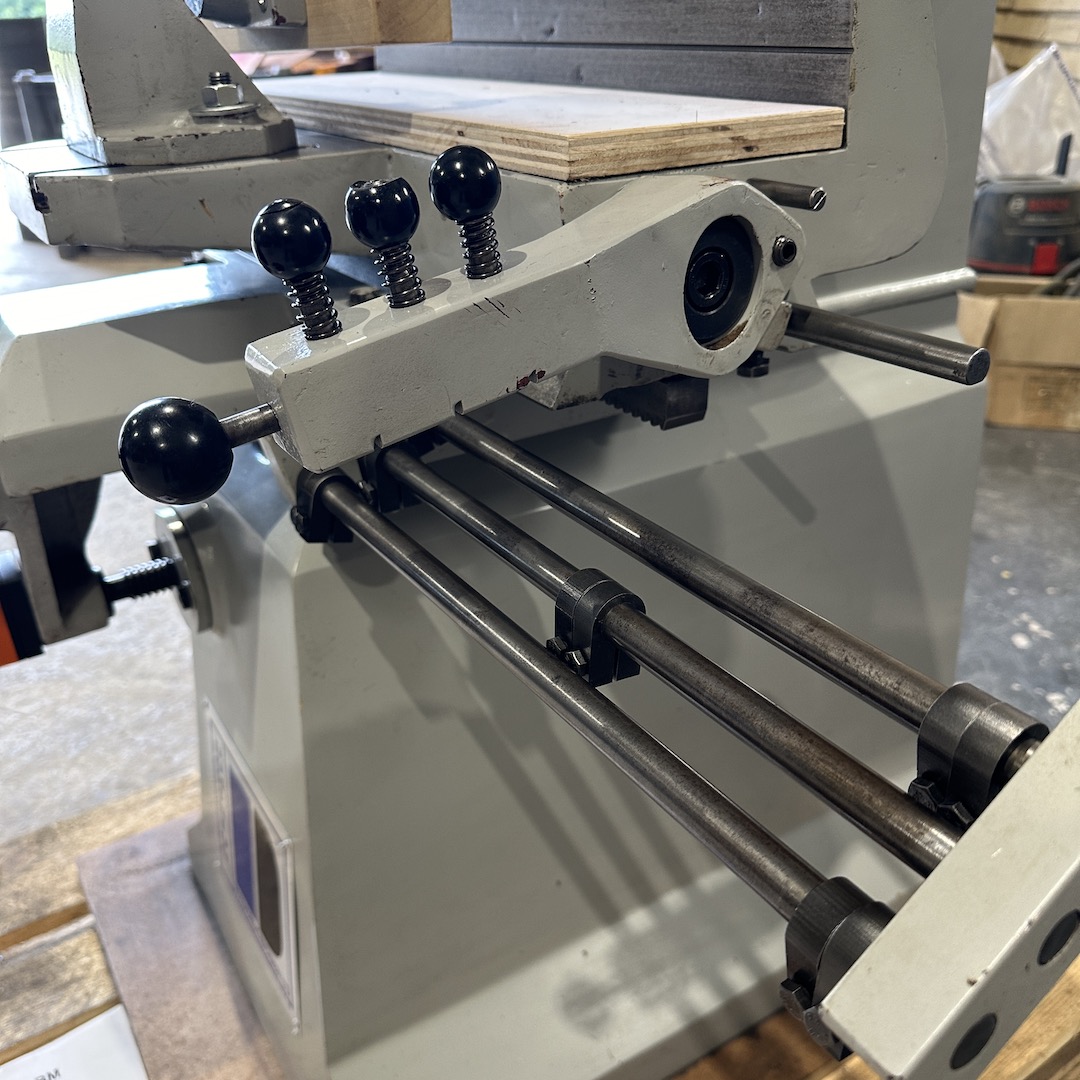

The work table is a precision machined casting mounted on the main frame. Complete with setting out stops.

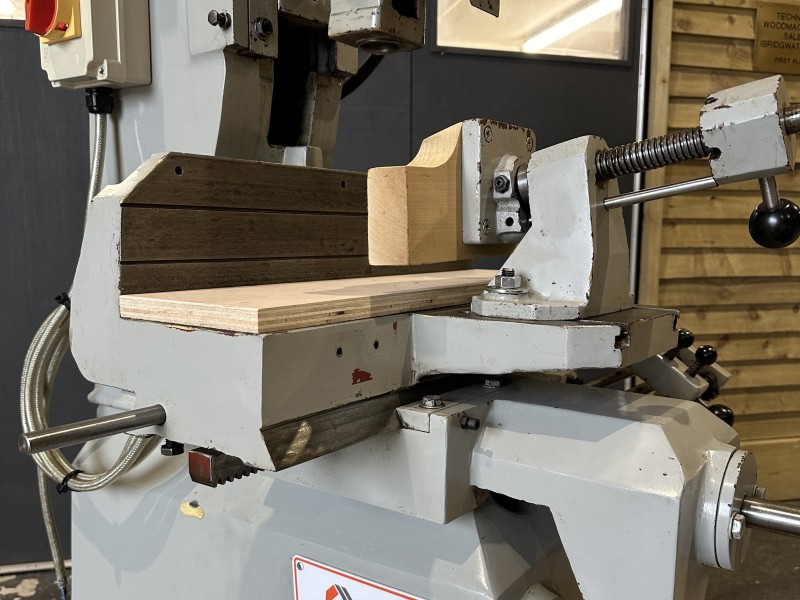

Using the table rear support, the timber locates square to the chisel. A strong designed cramp attached to the table holds the work in place whilst mortising.
Hand operated quick acting lead screw, forces the timber down and back against the rear support.
A pre-drilled clamp plate allows you to fix a wooden pad to prevent marking of the workpiece.
To view a range of alternative Chisel Mortisers please click here
Take a look at our eBay listing
Additional information
| Table Size | 560mm X 150mm |
|---|---|
| Clamping | Manual |
| Condition | Used |
