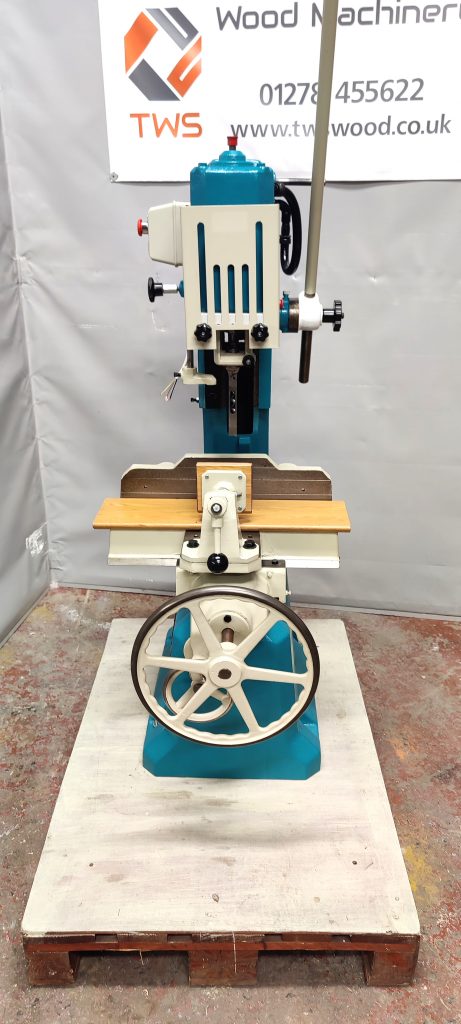

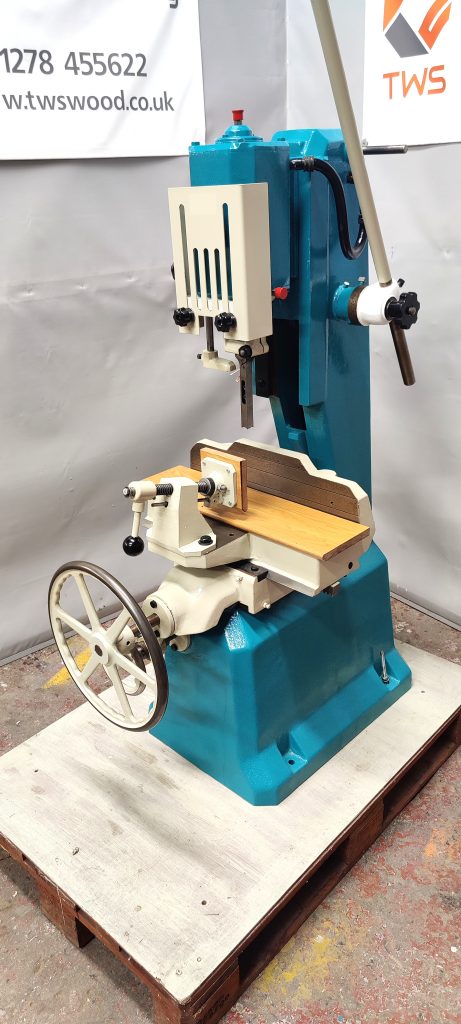

Wadkin DM Mortiser
Description
Wadkin DM mortiser, in our opinion, the best heavy duty, space saving machine ever built by a British manufacturer.
An essential part of all woodworking manufacture. A large capacity machine designed to produce clean accurate work with longevity.
High build standards combine strength with rigidity.The large base area gives perfect stability.
Convenient placed controls and adjustments to reduce operator fatigue.
Wadkin DM Mortiser machine specification :
The mortising head consists of a built in 1.5Kw (2Hp) motor which gives direct drive to the chisel unit.
Control is by a side mounted start stop controller with overload protection.
The head is mounted on precision machined v shaped slide ways with spindle bearings run in a dust proof enclosure.
The chisel holder bracket ensures perfect alignment in relation to the table below.
The head will accept chisels up to 25mm (1″) which hold in place by a split type locking device.
Adjustable depth/ haunch stop. The hand lever is adjustable in both length and angle, thus providing comfort for the operator.
The table moves on machined slides resulting in a smooth and accurate movement.
Left to right movement is by a large hand wheel through rack and pinion gearing.
Front to back movement is through a separate smaller hand wheel using a screw thread.

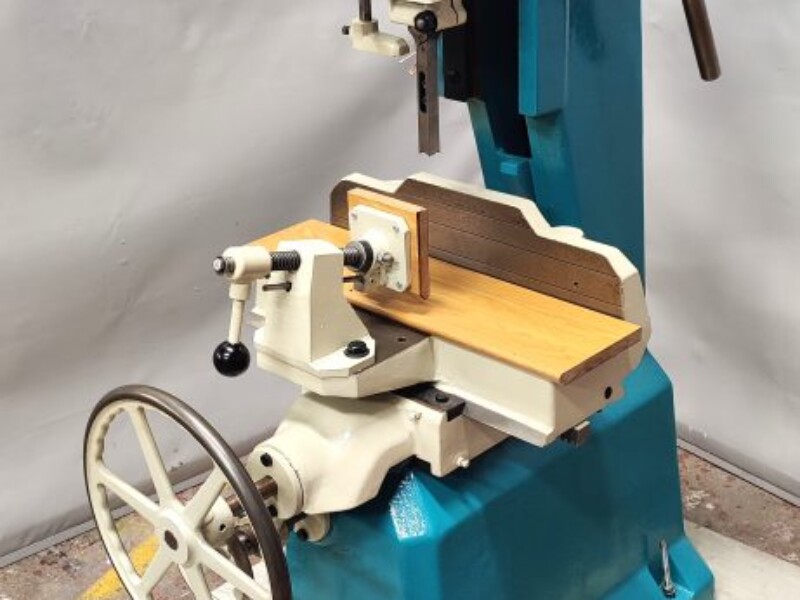

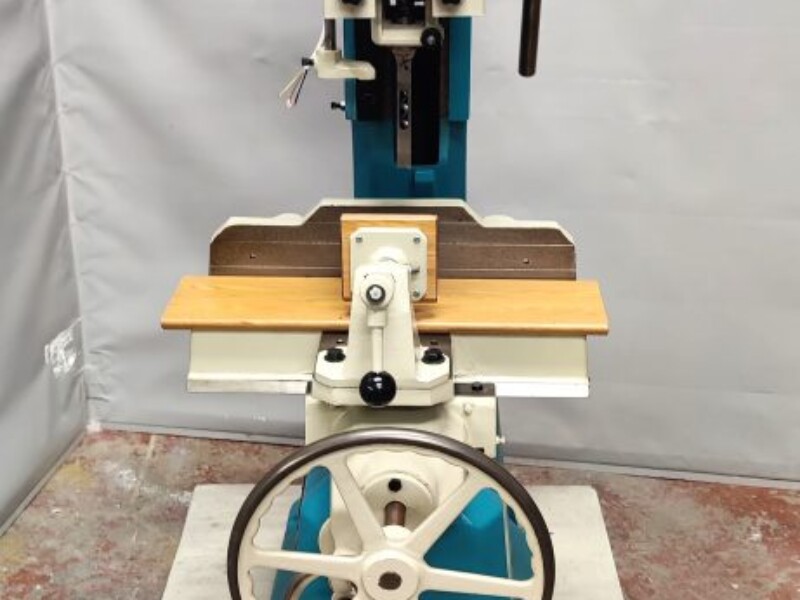

The work table is a precision machined casting mounted on the main frame.
Using the upright support, the timber locates square to the chisel. A strong designed cramp attached to the table holds the work in place whilst mortising.
A hand operated quick acting screw, forces the timber down and back against the rear support.
A pre-drilled clamp plate allows you to fix a wooden pad to prevent marking of the workpiece.
Wadkin DM mortiser .
For other mortise machines please click here
Additional information
| Table Size | 560mm X 150mm |
|---|---|
| Clamping | Manual |
| Condition | Used |
