SCM Planer Thicknesser – FS30 Smart

£2,000.00 +VAT
Print Listing
|
Email Listing
used

Specification
Working Width – 300mm
Surfacing Table Length – 1520mm
Two Piece Lifting Surface Tables
Minimum Working Thickness – 3mm
Maximum Working Thickness – 230mm
Feed Speed – 7 meters per minute
Steel Helical Infeed Roller
Steel Outfeed Roller
Dust Outlet – 120mm
Motor – 3KW (4Hp)
400v – Three phase
Cutterblock – 3 knife Tersa
Fence Tilting – 90° to 45°
C.E. Mark

Enquire about this Product

    Enquire Now

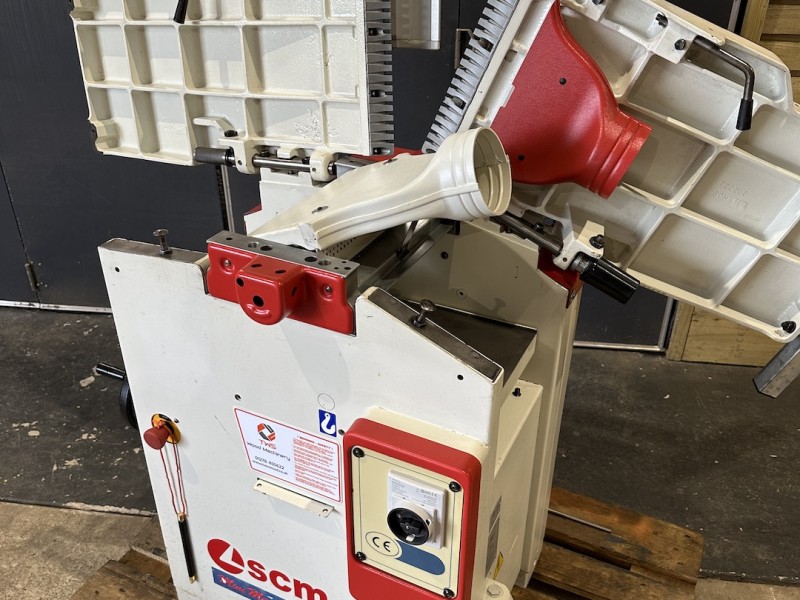

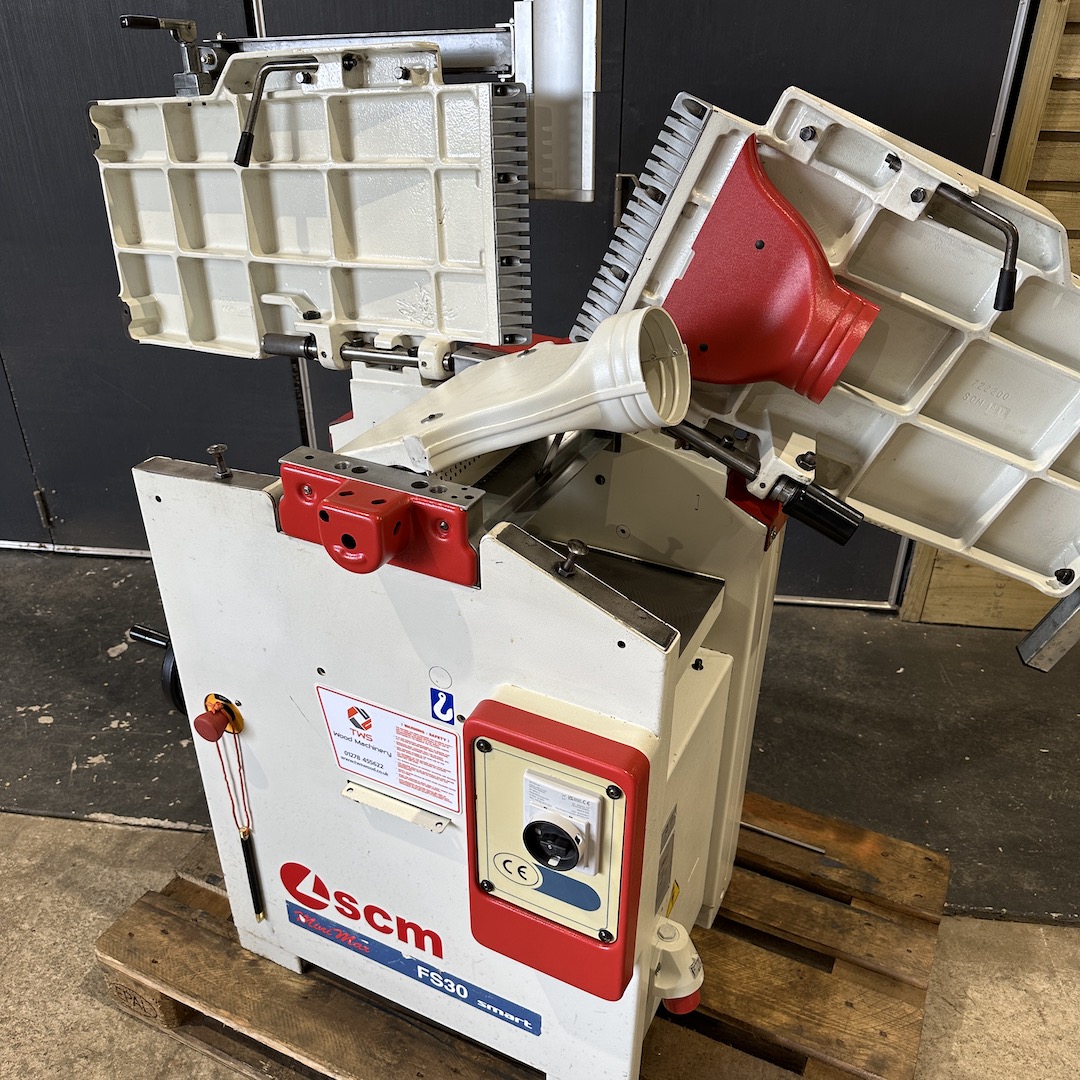

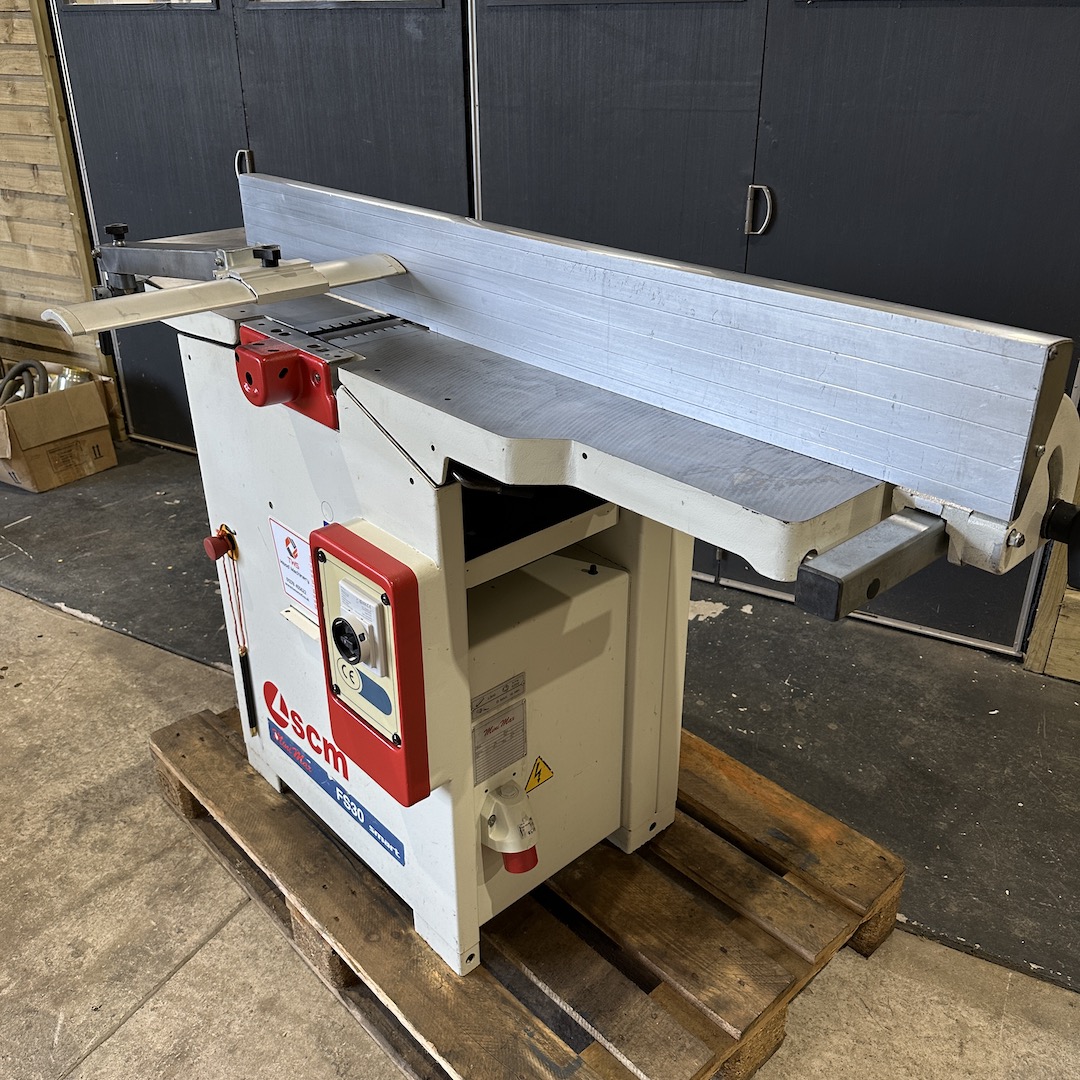

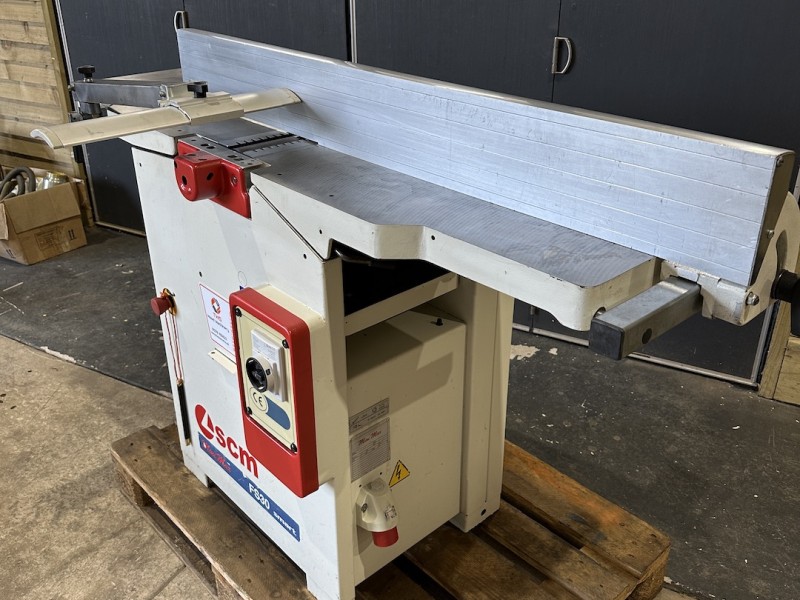

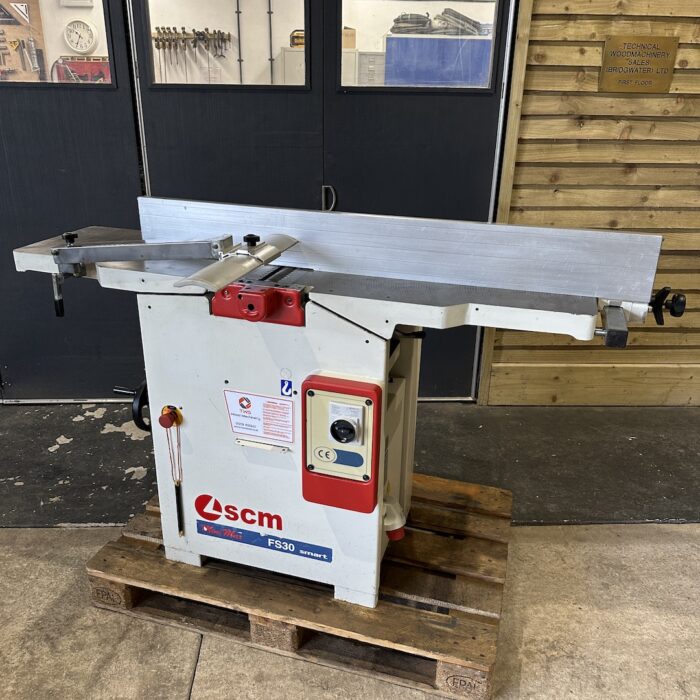

    Pre-owned SCM Planer Thicknesser

    Model FS30 Smart

    This SCM Planer Thicknesser came into us on a part exchange from a small one man workshop. The machine is in very good condition for it’s age and has been through our workshop for cleaning and servicing. New Tersa knives have been fitted.

    Optimal planing:

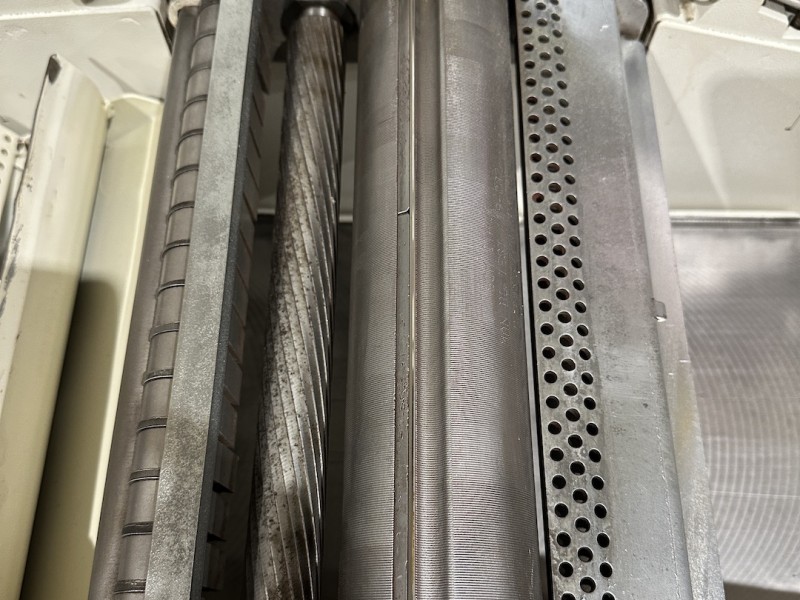

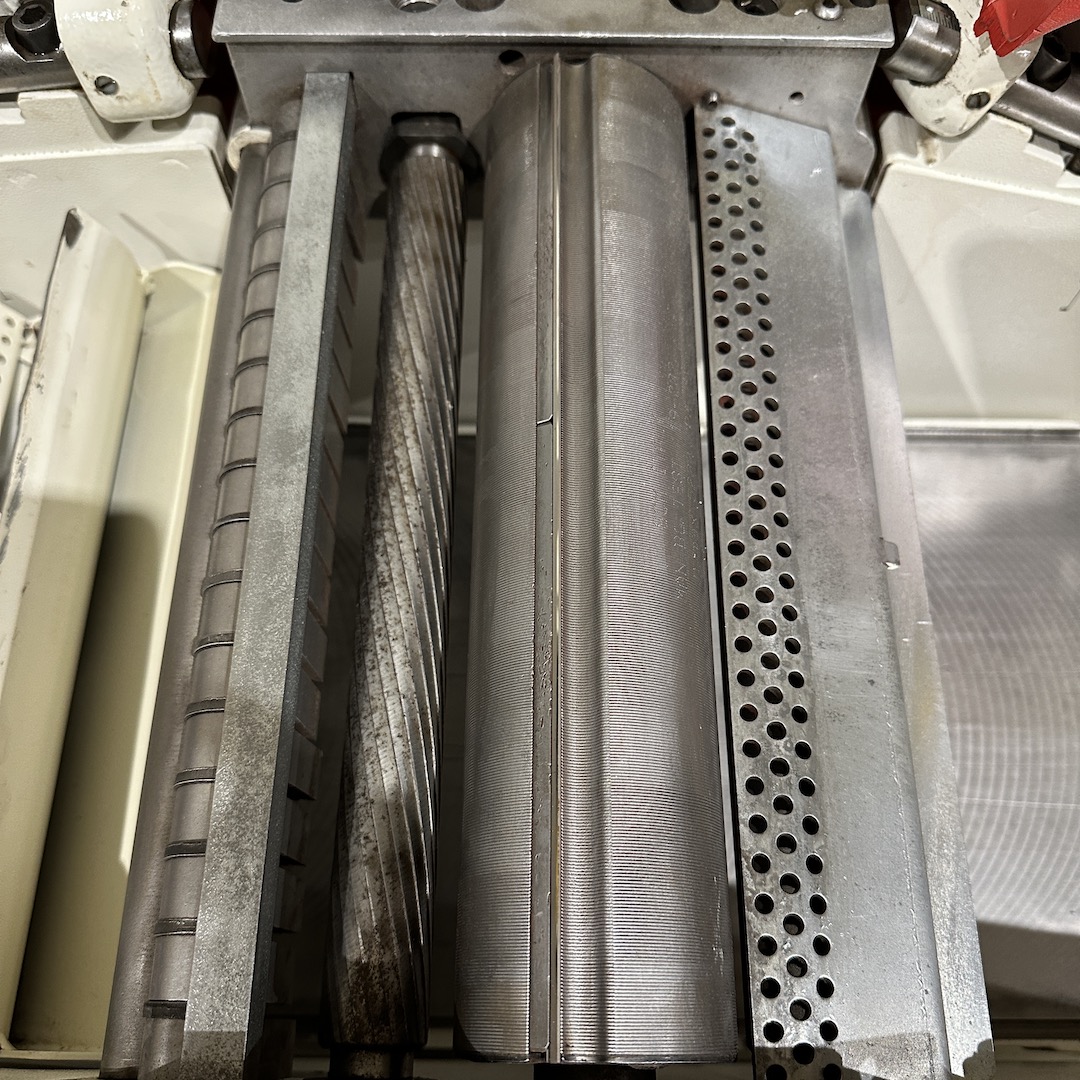

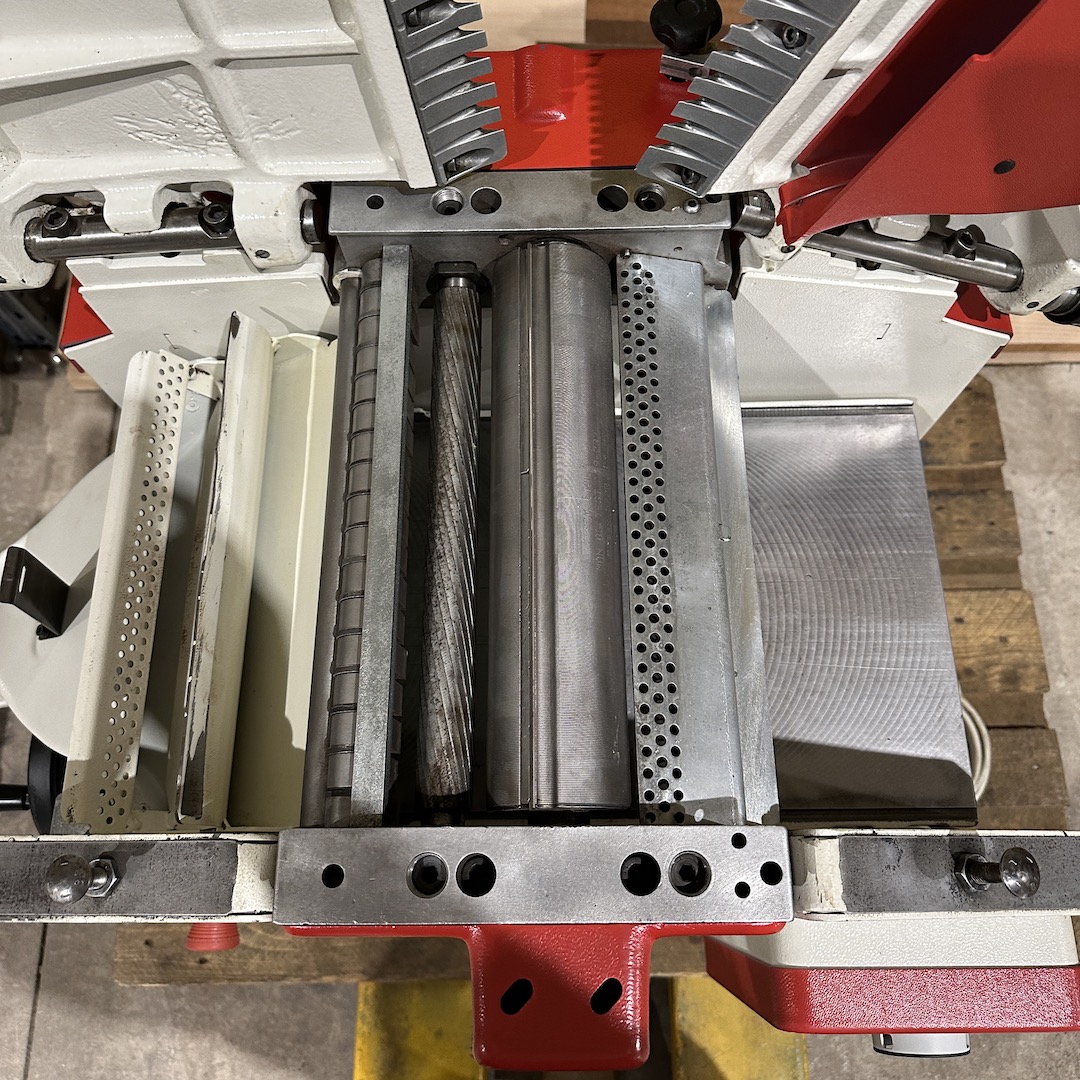

    The planer unit in this machine has a 72 mm diameter cutter block. Fitted with optional extra “Tersa” cutter block with quick tightening knives and automatic adjustment. For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.

    Absolute rigidity:

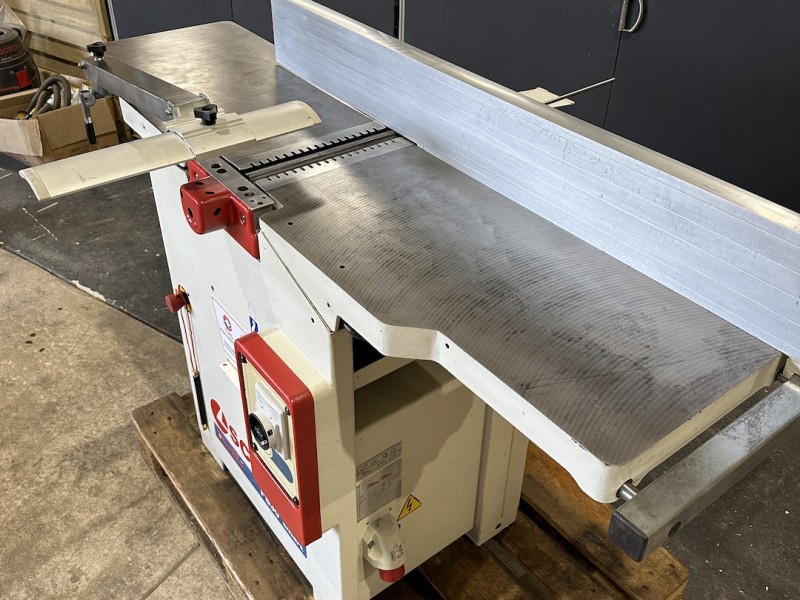

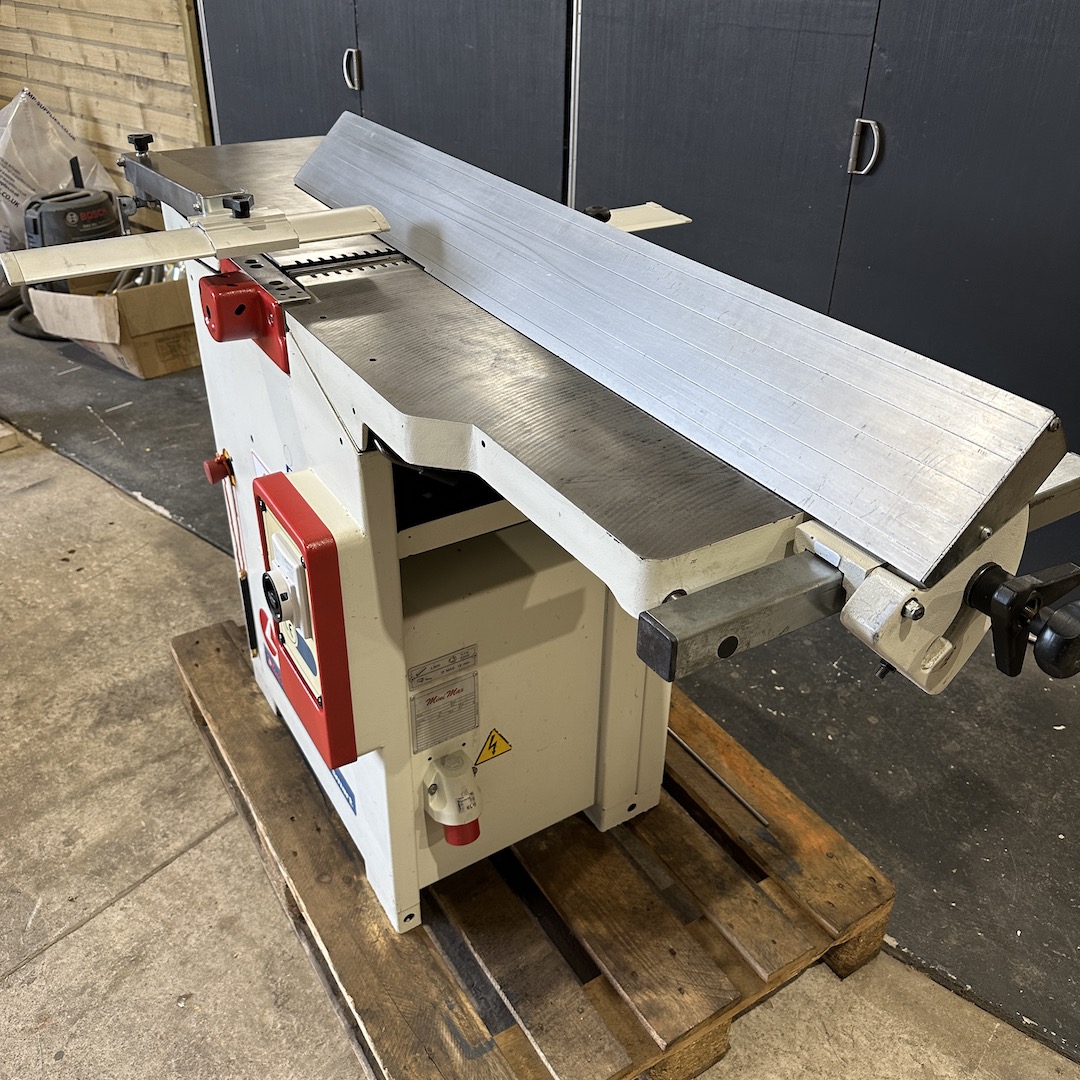

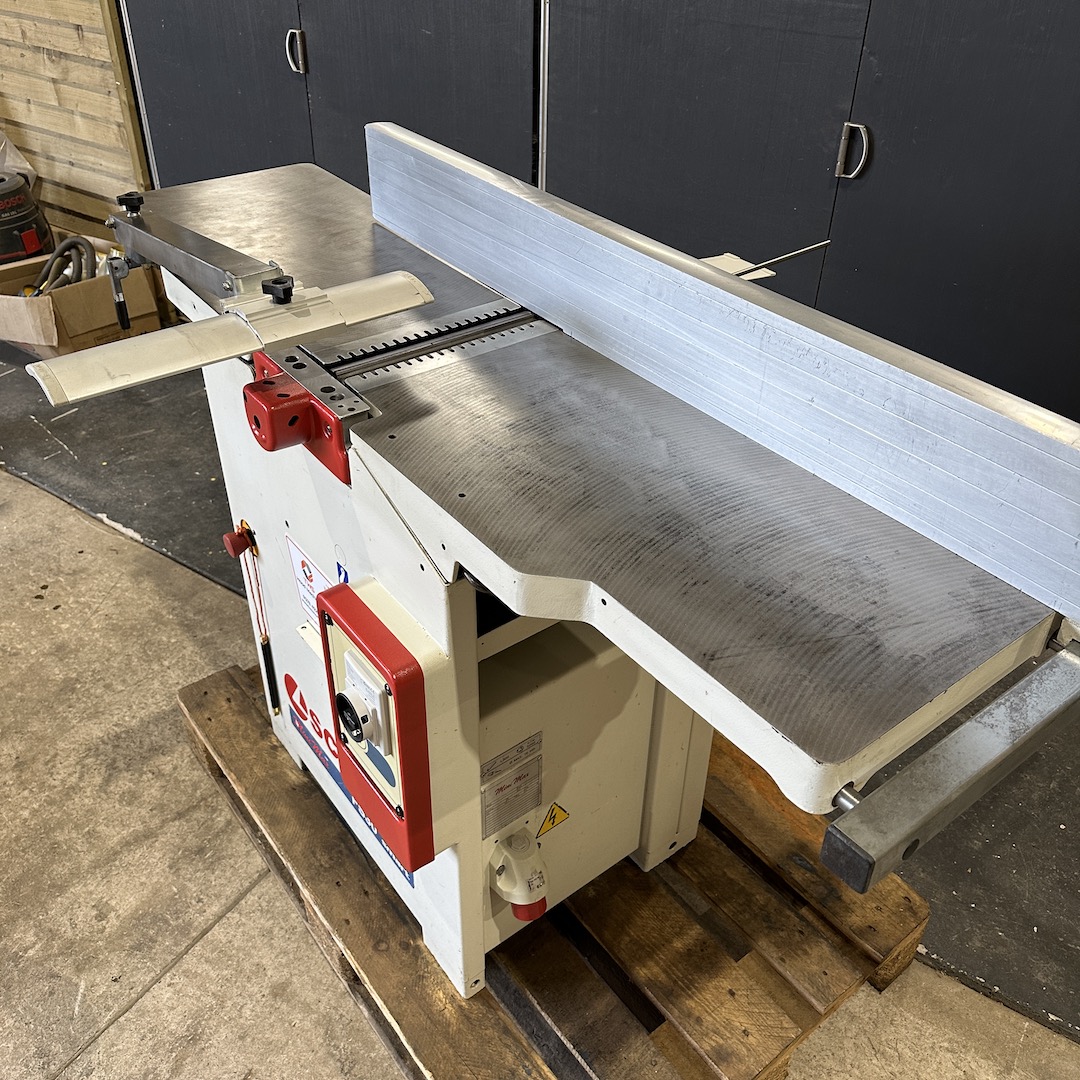

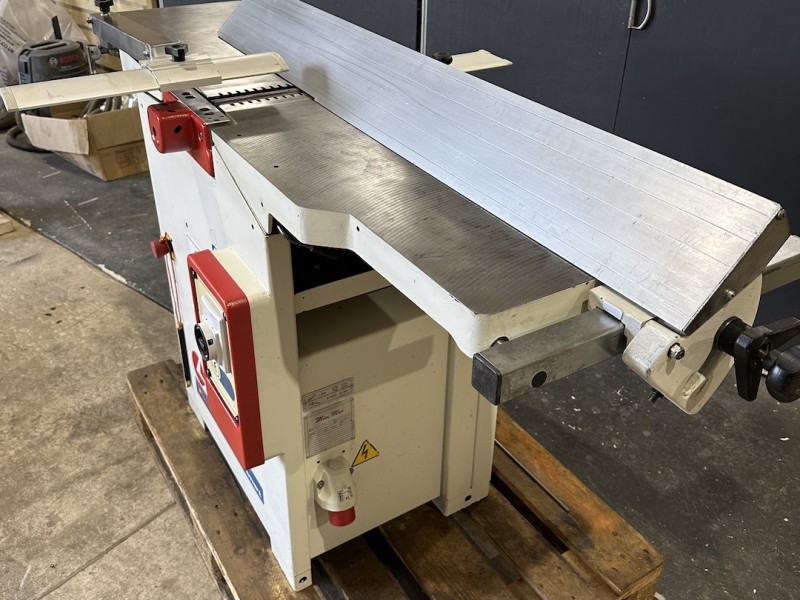

    Very high rigidity surfacing tables, solid cast iron. The aluminium

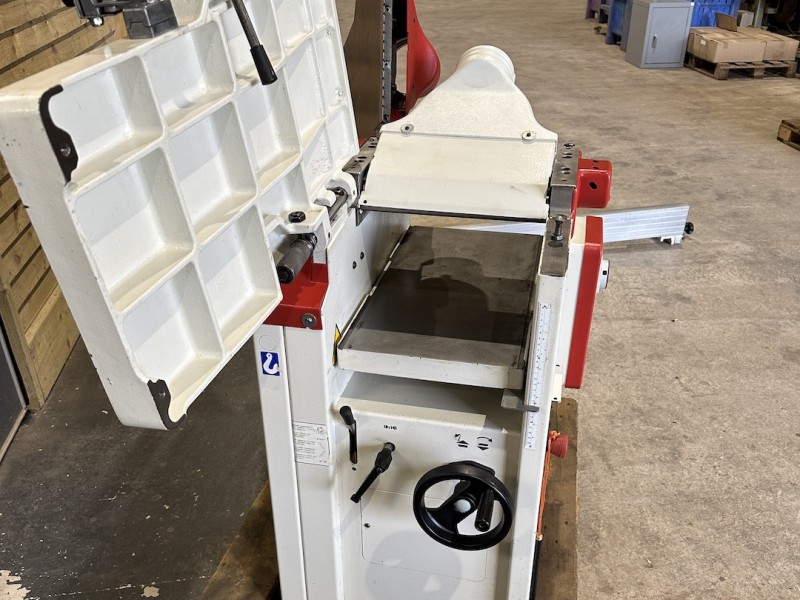

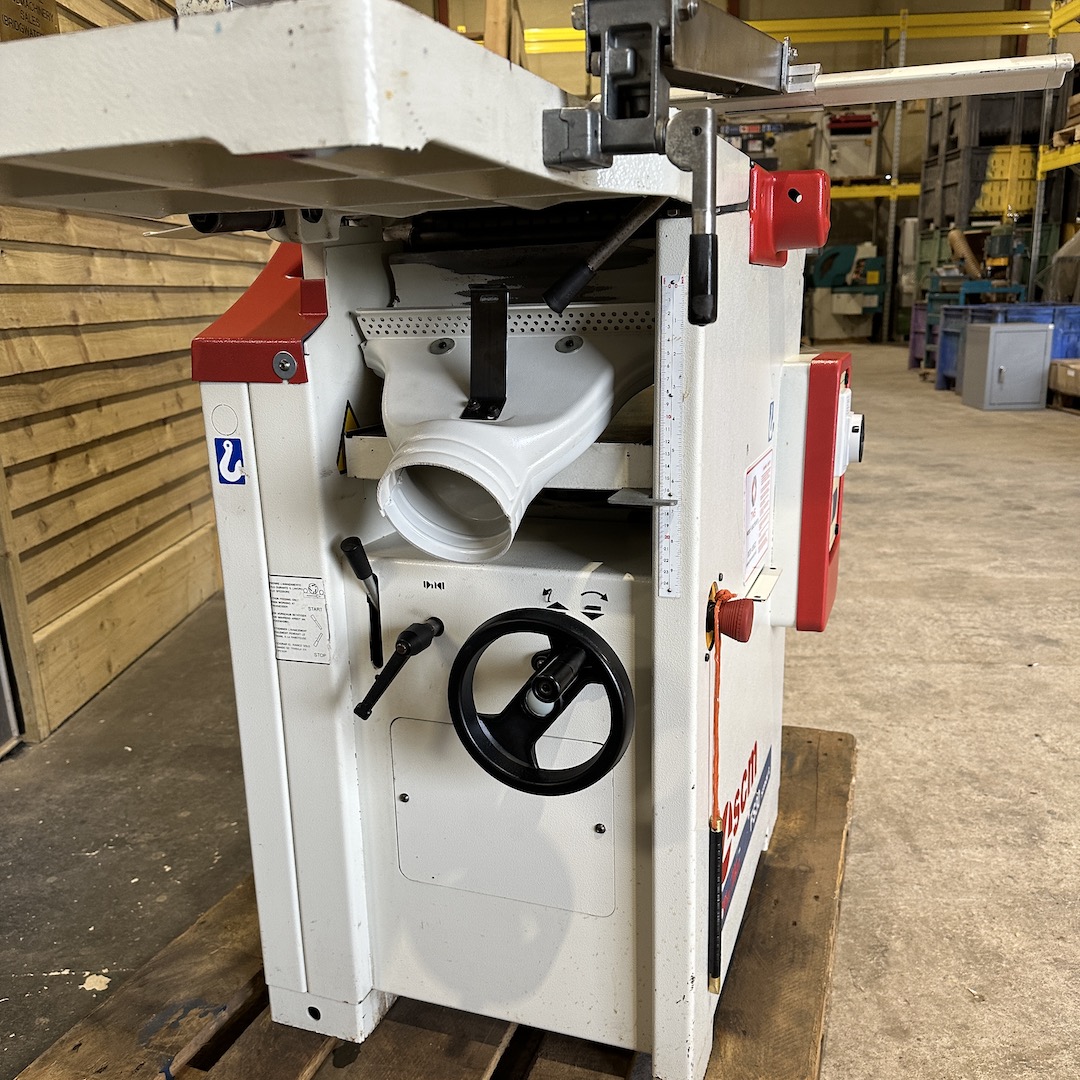

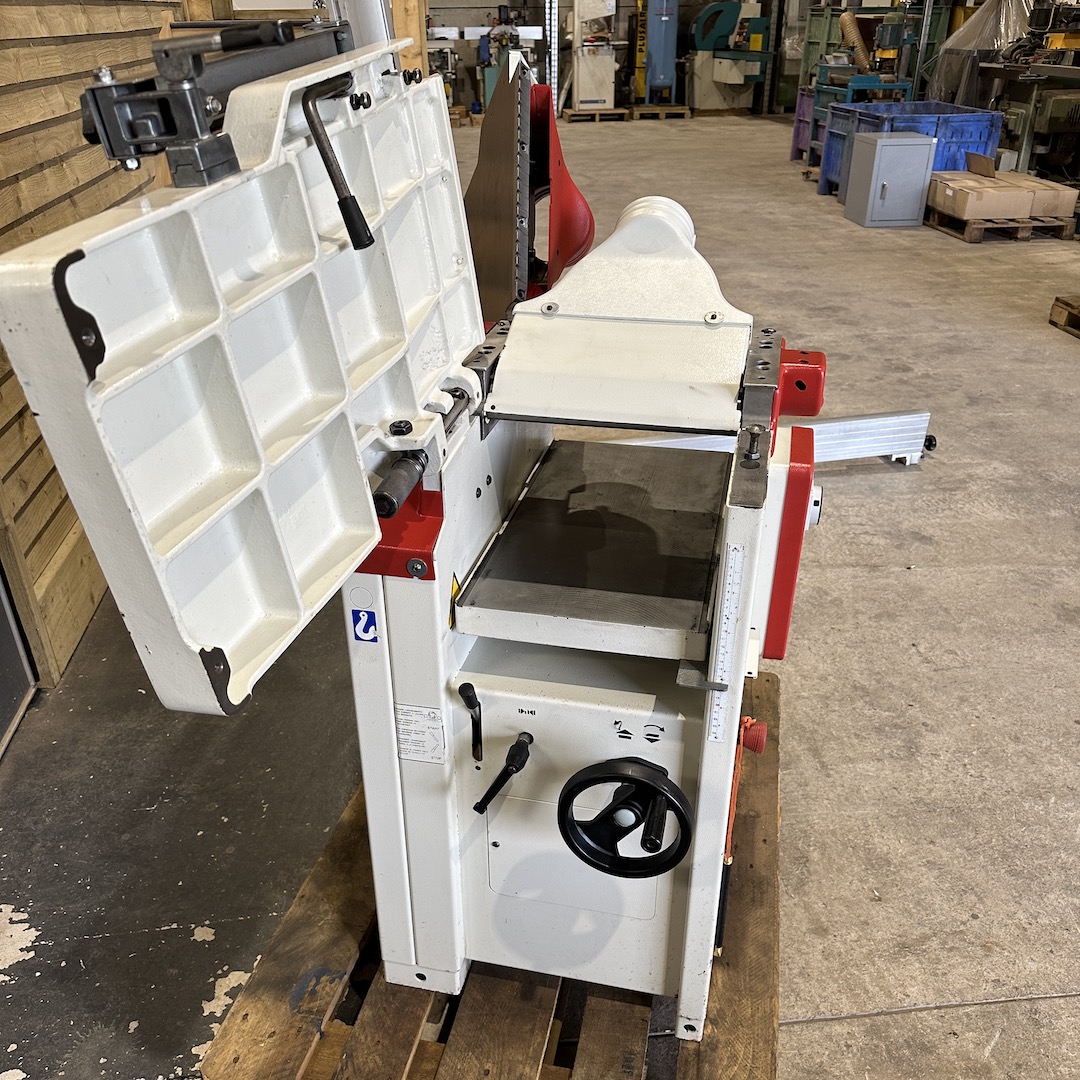

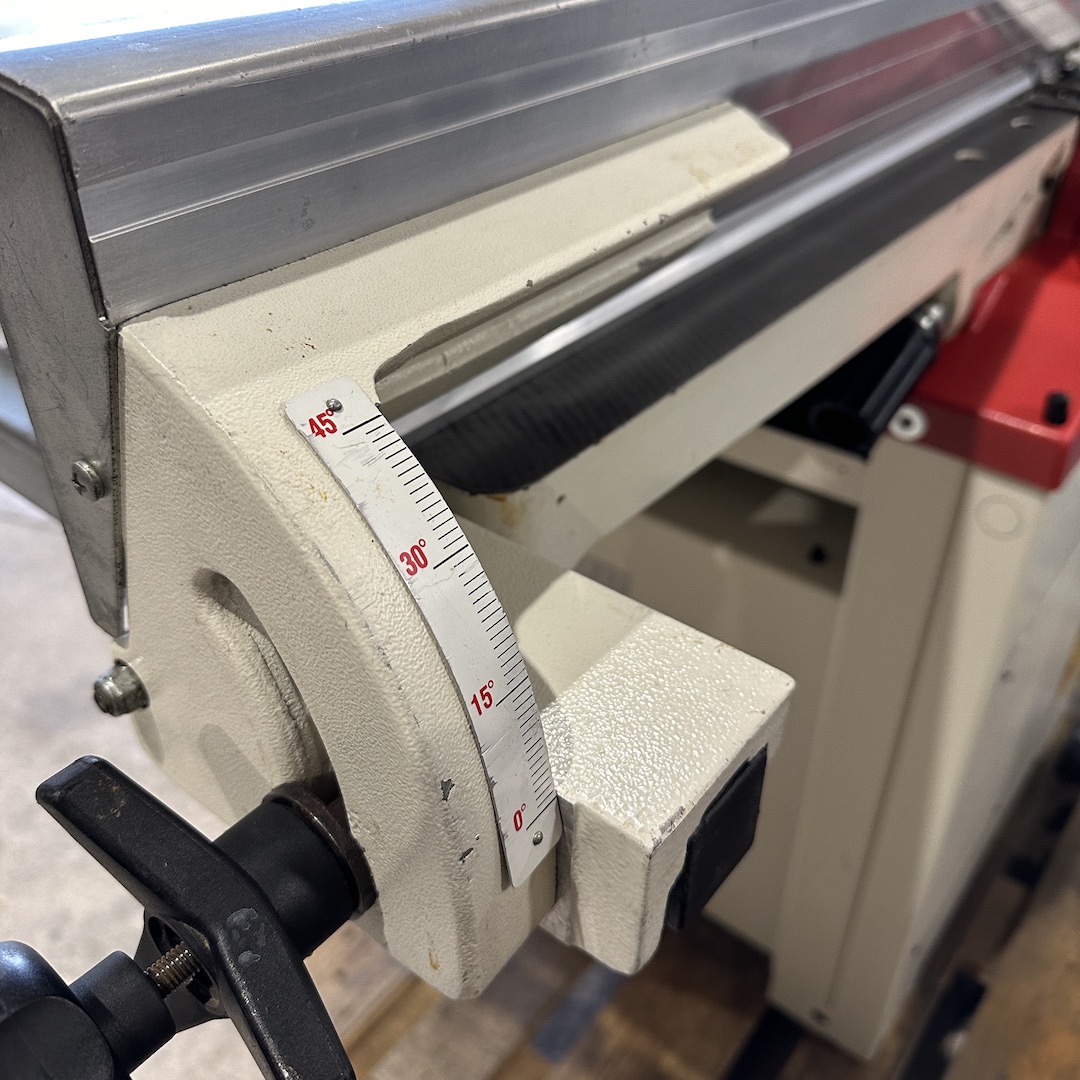

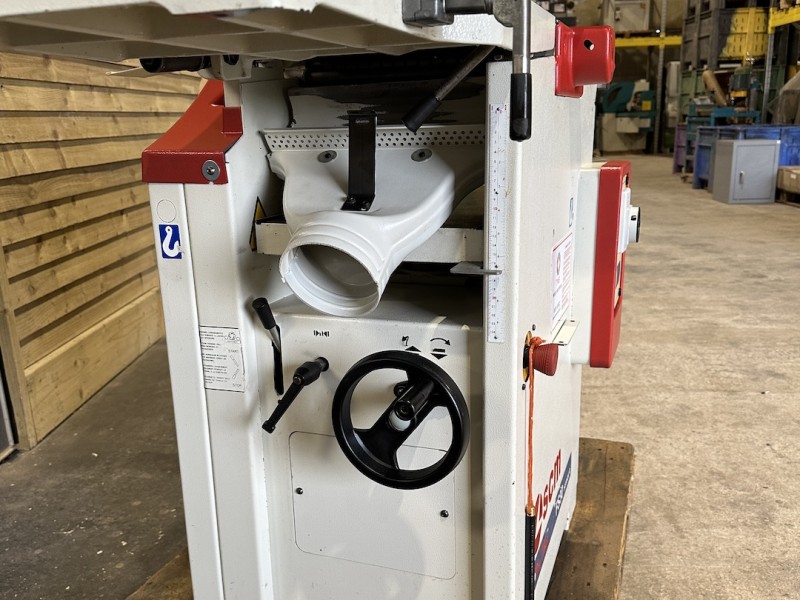

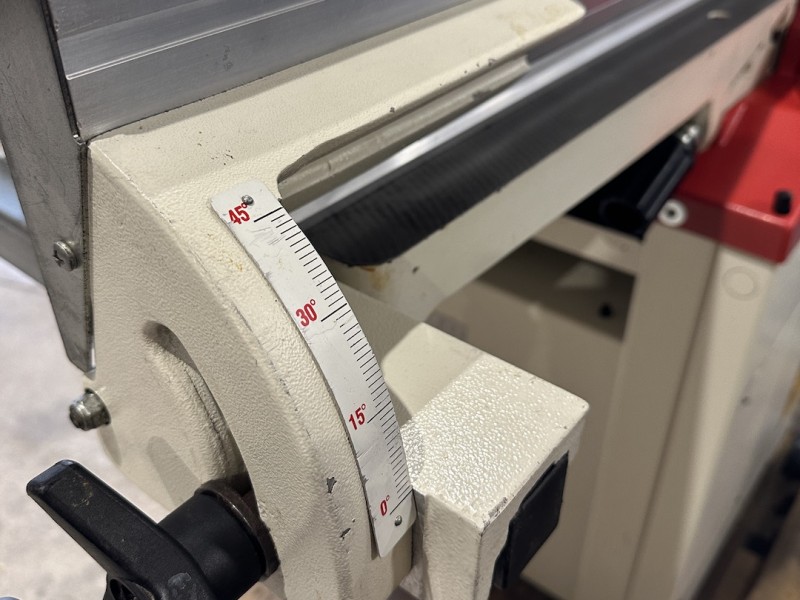

    fence has measures 1300mm long x 150mm high and can be tilted from 90° to 45°. A solid cast iron thickening bed is adjusted manually by a hand wheel conveniently positioned at the feed side of the machine. A scale readout ensures accurate setting when thicknessing timber.

    Power:
    A three phase 3Kw (4Hp) motor powers the cutterblock and is operated by a rotary switch mounted on the front of machine.

    For more information on this Pre-owned SCM Planer Thicknesser please get in touch.

    To see our other selection of New & Used Thicknessers Please Click Here

    Further information can be found on the SCM website

    Additional information

    Timber Capacity

    410mm X 240mm

    Cutterblock Type

    Spiral Cutter Block With 3 Sets Of Turn Over Knives

    Number of Knives

    3

    Rise & Fall

    Powered

    Feed Speeds

    6 & 12 M/min

    Surface Table Length

    2,200mm

    Condition

    New
